Haken Audio Announces EaganMatrix Micro Synth Module

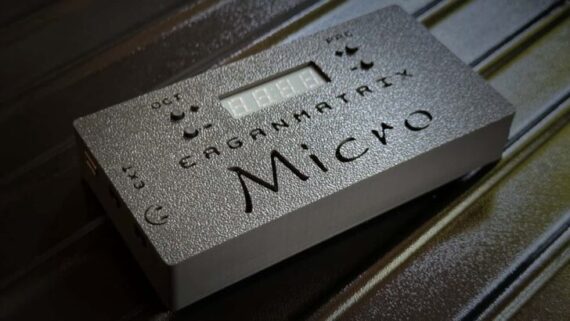

Haken Audio, creators of the Haken Continuum Fingerboard and other MPE-capable synths, has announced the EaganMatrix Micro – a new synth that packs the EaganMatrix sound engine into a compact USB module.

EaganMatrix is the sound engine that powers the Continuum, the Expressive E Osmose and several other synths. The EaganMatrix Micro features the same full-featured EaganMatrix sound engine, but in a compact self-contained form factor, powered and controlled via USB.

An intro video below, by Edmund Eagan, demonstrating using the Warbl wind controller to control EaganMatrix wirelessly, via BLE MIDI and the CME WIDI Host:

The demo includes both realistic virtual instrument sounds and more ‘out there’ sound design examples. Eagan customized these presets to take advantage of the Warbl’s specific sensing technology.

Hundreds of Presets are included with the EaganMatrix Micro. An external cross-platform (Mac and PC) Haken Editor can be connected to modify and customize the EaganMatrix System Presets, or to create new presets from scratch.

Specifications:

  • Polyphony: Nominal 1-3, Maximum 8
  • Stereo Audio Output: 3.5 mm TRS
  • EXT Connection: 3.5 mm TRS – Can be used as a pedal input (Yamaha FC3A with HOSA MHE-100.5 is recommended),                                                                                          or can be configured for a Control Voltage Converter.
  • Seven Segment Display: Preset navigation and settings
  • USB Power: 500 mA (190 mA average actual usage), via Mini USB connector
  • USB MIDI: via Mini USB connector (USB-A to Mini USB cable included with purchase) – Allows bidirectional MPE and MPE+ connection to other devices; allows connection to the Haken Editor for editing and archiving EaganMatrix presets
  • Dimensions: 11.3 x 5.8 x 1.9 cm (4.4 x 2.3 x 0.75 inches)
  • Weight: 0.075 kg (2.6 oz)

The EaganMatrix Micro — u2x is available now for $449.
