GS Music Bree6 Polyphonic Analog Synthesizer First Look

10 Mar, 2025 Synthesizers/Keyboard Synthesizers & Modular Synthesizers

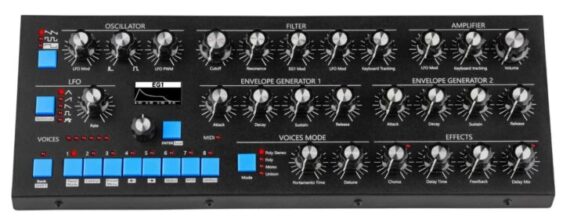

GS Music shared this video demo of the Bree6, a polyphonic analog synthesizer that features six voices of polyphony, each equipped with a single voltage-controlled oscillator (VCO), and a sub oscillator.

The signal path includes a mixer, a 4-pole low-pass voltage-controlled ladder filter (VCF), and a voltage-controlled amplifier (VCA). The control signals are digitally generated, incorporating one low-frequency oscillator (LFO) and two ADSR-type envelope generators. Additionally, the Bree6 integrates an effects processor with chorus and delay.

Features:

Polyphony: 6 voices.
Oscillator (VCO): Single Analog oscillator per voice.
Filter (VCF): 24dB/Oct Low-pass ladder filter with resonance control.
Envelope Generators: 2 ADSR type.
LFO: Triangular, Ramp up, Ramp down, Square, Sample and hold.
Effects: Delay, Chorus (DSP: 32 bits, 48kHz, DAC/ADC:24 bits).
Presets: 512
Connections: MIDI In, MIDI Out, Thru, L/Mono Audio Output (Balanced, 1/4″ TRS), R Audio Output (Balanced, 1/4″ TRS), Headphone Output (Stereo, 1/4″ TRS), USB.
Power Supply: Input: 100 –240V 50/60 Hz 1.2 A. Output: DC 12V 3A
Power Consumption: 3W
Dimensions: 360 mm x 126 mm x 67 mm / 14.17” x 4.96” x 2.64”
Weight: 1.5 kg / 3.31 lbs.
Dimensions with packaging: 460 mm x 200 mm x 140 mm / 18.11” x 7.87” x 5.51”.
Weight with packaging: 2.1 kg / 4.63 lbs.
