Superbooth 2023: Moon Modular introduces 512 Audio Interface Module

13 May, 2023 Audio Interfaces, Synthesizers/Keyboard Synthesizers & Modular Synthesizers

At Superbooth 2023, Gert Jalass of Moon Modular is introducing a new entry in his extensive line of Moog format synth modules.

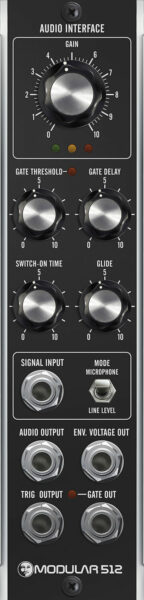

The company is also celebrating 15 years of “The Lunar Experience”, since their founding in 2008. The M 512 Audio Interface is a multi-function module, letting you bring mic and line level signals into your modular, and also providing Envelope Follower & Trigger/Gate Extractor functions.

Features:

First it is a preamplifier, to raise microphone or line signals to modular level to be used inside the synthesizer system.
The signal passes the gain control with 3-LED-level indicator and microphone/line level input switch.
The audio output provides the amplified input signal.
The gate/trigger threshold control defines the level from which the gate/trigger puls is released
The Switch-on time defines the lengths of the gate pulse, the gate delay controls the delay of this pulse.
The glide control “softens” the form of the generated envelope voltage.

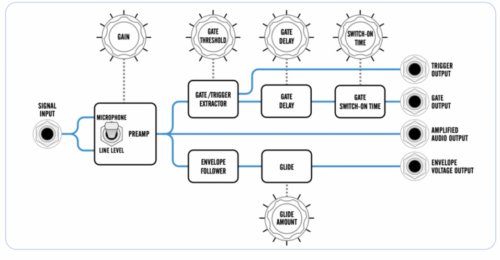

A flowchart of the module’s signal paths:
