Cherry Audio introduces GX-80, A ‘Dream Machine’ Virtual Synthesizer that is like A Yamaha GX-1 and CS-80 in One Instrument

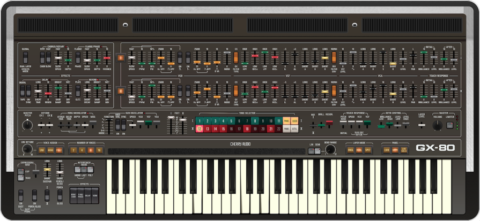

Cherry Audio today introduced GX-80, a “transformative virtual synthesizer” that combines the unparalleled sound and features of the fabled Yamaha GX-1 “Dream Machine” and its iconic offspring, the CS-80, to create a powerhouse hybrid virtual instrument.

GX -80 featuring the carefully circuit-modeled DSP designs of developer Mark Barton, Cherry Audio says that they have replicated every subtlety of the classics to create the most authentic emulation of its kind.

More than a Replicant

GX-80 integrates the GX-1’s distinctive feature set into the CS-80 architecture; most significantly, the massive dual-layer architecture that effectively made the GX-1 the equivalent of two CS-80s and then some.

The GX-1’s unique highpassed resonant pulse and bandpassed sawtooth waves, octave-up triangle wave, and filter envelope inversion are incorporated, opening up a new universe of sonic experimentation. Most notably, GX-80 includes an reproduction of the legendary GX-1 filter, delivering timbres that even the mighty CS-80 cannot produce.

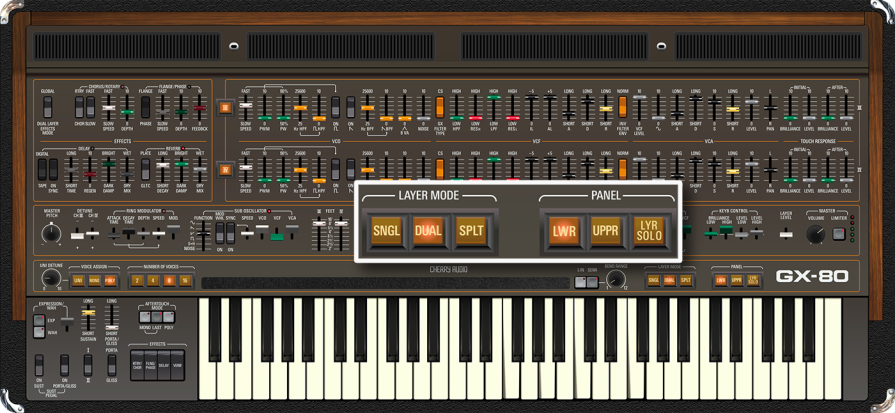

GX-80 boasts a dual-layer voicing architecture, outfitted with 16 polyphonic voices per layer. The instrument is capable of sounding two different CS-80 style sounds simultaneously, while panning each rank independently, to produce rich stereo timbres and complex, layered sounds. For ultimate flexibility and expressive performance, GX-80 provides a split keyboard mode and an option to simulate polyphonic aftertouch with a monophonic aftertouch controller.

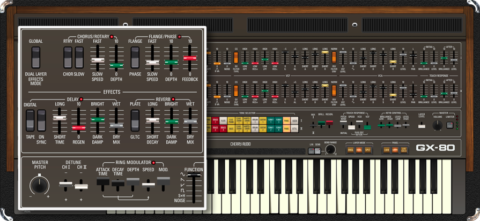

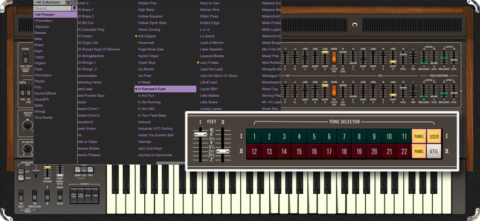

The GX-80 comes with over 1,000 presets and equipped with studio-grade effects.

The Inspirations

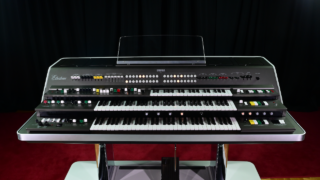

In 1973, the most technologically advanced polyphonic synthesizer ever conceived was released. Featuring groundbreaking advances in polyphony, velocity and aftertouch sensitivity, along with four ranks of incredible sound quality, the GX-1 was a quantum leap forward from its contemporaries. It was produced in extremely limited numbers (estimated at around 20) and cost $50,000.

As a result of its immense size, weight, and price tag, The Dream Machine, as it was known, was available only to the most well-heeled professional musicians. Only a handful of these instruments survive today. Notable users of the GX-1 and tracks featuring it included Keith Emerson (“Fanfare for the Common Man”), Stevie Wonder (“Village Ghetto Land”), ABBA (“Lay All Your Love on Me”), and John Paul Jones of Led Zeppelin (“All My Love”).

Four years later, in 1977, the more programmable CS-80 synthesizer was released. More compact and affordable, owing to a single keyboard and two ranks, the CS-80 retained the same basic voicing architecture and innovative real-time performance control capabilities as the GX-1. The CS-80 was embraced by music professionals, including Paul McCartney, Eddie Jobson, Michael Jackson, Peter Gabriel, Hans Zimmer, and Vangelis, who famously made use of its highly expressive real-time performance capabilities in Ridley Scott’s 1982 sci-fi classic, Blade Runner.

Though their outward appearances were radically different, the GX-1 and the CS-80 instruments were very similar under the hood. Both featured a voicing architecture based on “ranks,” wherein each rank was a complete synthesizer voice consisting of an oscillator, highpass and lowpass filters, a noise generator, a sine wave oscillator, a VCA, and envelope generators for both the filter and VCA. The CS-80 included two of these voice ranks, each capable of playing up to eight independent polyphonic notes — a total of 16 synth voices under the hood. The GX-1 featured four of these eight-note poly voice ranks, assignable across two keyboards, plus a single solo synth voice rank for its three-octave mini keyboard and another synth voice rank for the pedalboard.

Unlike the CS-80, the GX-1 was strictly a preset instrument. Though it had no onboard synthesizer parameter controls, its analog synthesizer voicing could only be programmed using an external hardware programmer box through a very elaborate procedure.

On the other hand, the GX-1 had several tricks up its sleeve that were not passed on to the CS-80. The GX-1 oscillator section featured a pulse wave with an adjustable highpass resonator and a sawtooth wave with a dedicated bandpass resonator, in addition to and in parallel with the standard pulse and sawtooth wave outputs. Additionally, it had an adjustable octave-up triangle wave, a filter envelope inversion option, and a VCF comprised of highpass and lowpass filters with such immense range that they are still considered legendary to this day.

More than the Sum of its Parts

A virtual reproduction of the CS-80 has long been the most popular request from Cherry Audio fans. The company began work in 2021 to make the dream a reality. DSP designer and developer Mark Barton’s extensive research of the original CS-80 and its schematics led him back to the CS-80’s predecessor, the indomitable GX-1.

“The CS-80 was loathe to give up all its secrets,” says Mark Barton, whose work on deciphering its audio path was exemplary. “As soon as we found something we thought strange, we immediately verified the behavior on both CS-80s we used for modeling. We then did a deep dive into the schematics to verify why we were hearing what we were hearing.”

As a result, GX-80 combines all of the sonic characteristics of the originals with exceptional accuracy. When enhanced with GX-80’s discrete layer volume and panning controls, the result is a colossal dual-layer voicing architecture, 16 polyphonic voices per layer, with two different timbres simultaneously playable in a split or stacked layer mode.

To provide an experience as close as possible to the original hardware, GX-80 adds a split keyboard mode and support for both polyphonic and monophonic aftertouch controllers. Further, Cherry Audio has added a “last-note priority” mode, for simulated poly aftertouch response with a monophonic channel aftertouch controller. GX-80 is available now with an intro price of $59 (normally $79).

Cherry Audio and synthesist Tim Shoebridge have again teamed up for an introductory video to get users up and running:
