Michigan Synth Works MSW 820 Analog Synthesizer Sneak Preview

17 Jan, 2026 Music News & Music Videos

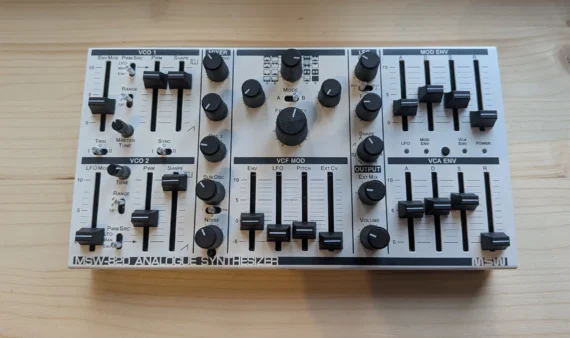

Michigan Synth Works has introduced the MSW-820, a 2-oscillator based analog monophonic synthesizer.

The MSW-820 Analogue Synthesizer features an advanced 16-mode voltage controlled filter, 2 envelope generators, digital LFO with sync and trigger functions, digital noise source with 8 flavors, MIDI (TRS or USB).

The synth can be used in desktop format or integrated into a Eurorack system.

Specifications:

VCOs:

AS3340 Based, Pulse and Sawtooth Waveforms
ENV Modulation (OSC1) and LFO Modulation (OSC2)
Range: 16’/8’/4′, 7 Octaves
Pulse Width Modulation: 50% to Min
PWM Mode: ENV/Manual/LFO Modulation
Master and OSC2 (offset) Tune Control
Pulse/Sawtooth Mixer control per Oscillator
2 Hard Sync Modes: O2 Track Pitch or O2 Do not track pitch
2 Reset Modes: Reset O1 on gate or Reset O1 and O2 on gate

Sound Mixer:

External Input (pre filter)OSC 1 Level
OSC 2 Level
Sub Osc Level tracking OSC1 with 1, 2, and 2 PWM Octave Settings
Noise Level with 8 Noise Models:White, Pink, Hex Invert, Crackle, Orgone (pitched), Sonar (pitched)

VCF:

AS3109 Base16 Modes. Low Pass, High Pass, Band Pass, Allpass (aka Phase)
Cutoff Frequency: 10Hz to 20kHz
Resonance: 0- Self Oscillation
CV Follow: 0-100%
This knob (Audio rate filter modulation from OSC1’s triangle output)
Envelope Modulation via Attenuverter (-5 to 10)
LFO Modulation via Attenuverter (-5 to 10)
Pitch Modulation via Attenuverter (-5 to 10)
External CV Modulation via Attenuverter (-5 to 10)

LFO:

Rate: 0.1 Hz to 22 Hz8 Shapes with crossfade between shapes:Sine, Square, Ramp, Tri, Saw, Expo Decay, Random, Smoothed Random
2 Reset Modes. Reset on Gate and Reset on Gate with Phase Control (via Fade knob)
Fade Control (LFO Delay with Fade in)
Bipolar Rate indicator

Envelopes:

Attack time: 1.5 ms to 2 s
Decay time: 2 ms to 10 s
Sustain Level: 0-100%
Release Time: 2 ms to 10 s
Modulation Envelope is hardwired to Modulation bus
VCA Envelope is hardwired to VCA

VCA/Output Mixer:

VCA Control
External Input (post filter/Env)

Inputs/Outputs:

MIDI IN. TRS 3.5mm PSIMIDI (either A or B)
Clock IN to Control LFO Rate
Gate IN. 5-10V
V/Oct IN
Filter CV IN
LFO Mod IN
Audio IN
Synth/Mix OUT
USB C IN/OUT. 5V Power 200 mA. DC Adapter included. Also serves as USB MIDI

The MSW 820 Analog Synthesizer is priced at $499 and is expected to be available later in Jan 2026. Visit the Michigan Synth Works site for more information.
