Free Software Synth Recreates Nintendo FDS Chiptune Sound
Magical FDS Plug is a free and open-source software synthesizer plug-in, for Mac and Windows, that reproduces the sound of the Nintendo FDS sound chip.
Here’s what they have to say about it:
“The FDS sound chip features a unique architecture in which a 64-sample waveform memory (carrier) is modulated by a separate 32-step instruction sequence (modulator).

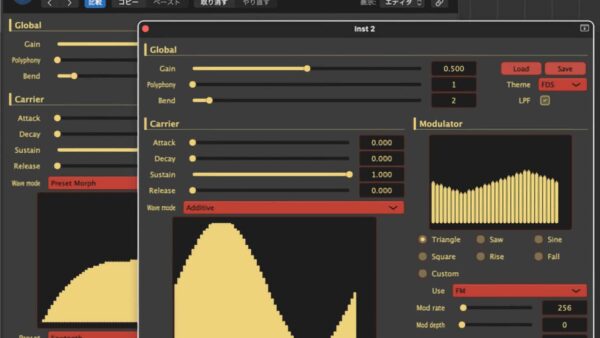

Magical FDS Plug preserves the full flexibility of the original hardware, while providing a logical interface for building waveforms — through additive synthesis, presets, and more.”
Features:
- Carrier + Modulator — two independent signal paths. Design the audible waveform (carrier) and its modulation sequence (modulator) separately.
- Logical waveform editing to take the guesswork out of FDS sound design:
- Additive Synthesis — Drawbar-style, like a tonewheel organ. Mix harmonics with 8 sliders.
- Preset Waveforms — Start from triangle, sawtooth, or sine wave, then reshape the tone via compression and expansion.
- Pulse Waveform — Shape the waveform by adjusting the pulse width (1–63) of a square wave.
- Freehand Drawing — Draw a 64-point waveform directly using sliders.
- Modulator: 6 presets + Custom — Triangle, sawtooth, sine, square, ramp up, ramp down. In Custom mode, enter a 32-step opcode sequence (32 digits, 0–7) as text.
- Modulation rate modes — Three modes: LFO (slow, cyclic modulation), FM (timbral modulation), and OFF.
- ADSR envelopes for both carrier and modulator — Shape the volume and modulation over time, with the same workflow as Magical 8bit Plug 2.
- Hardware-accurate output filter — A ~2 kHz low-pass filter modeled on the original hardware, switchable on/off (default: on).
Magical FDS Plug is available now as a free download.
