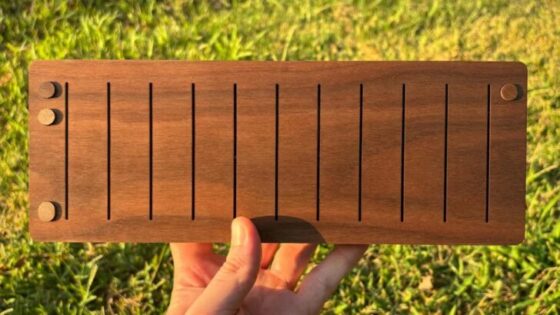

Ellitone KeyControl MIDI/CV Keyboard Controller + Sequencer
The Ellitone KeyControl is a unique, handmade MIDI/CV Keyboard Controller that features 12 velocity-sensitive wooden Touch Bars and a built-in ‘ambient poly sequencer’ mode.
The KeyControl is made from Black Walnut hardwood and comes in two versions, with or without AAA portable battery power. The version without AAA battery power is 25% slimmer. Both versions can be powered via USB-C.
The KeyControl is designed to be widely compatible with many different types of existing gear including:
- Computers and Phones running DAWs (USB MIDI);
- Vintage and modern keyboards/synthesizers/drum machines that support classic 5-Pin MIDI;
- Modern synths that support TRS MIDI; and
- Vintage/modern analog synthesizers that require Control Voltages.
Features:
- USB MIDI output via USB-C
- 5mm TRS “Style-A” MIDI output that can be easily adapted to classic 5-pin MIDI output using an inexpensive “TRS style-A to 5-pin midi” cable adapter.
- MIDI output messages include CHANNEL, NOTE ON/OFF, VELOCITY
- Control Voltage (CV) features:
- 3 outputs on the right side of the device (3.5mm) provide voltage outputs for NOTE/PITCH, TRIGGER, VELOCITY
- monophonic NOTE/PITCH output voltages are standard 1 Volt Per Octave and have a range of 4 octaves (0-4V)
- Trigger voltage output provides a 25 millisecond pulse at +5 volts whenever a new note is triggered
- Sustained GATE signals can be achieved by holding down the SUSTAIN Button
- Velocity voltage output has a range of 0-4 Volts
The Ellitone KeyControl MIDI/CV Keyboard Controller and Sequencer is available now, priced starting at $154.99.
