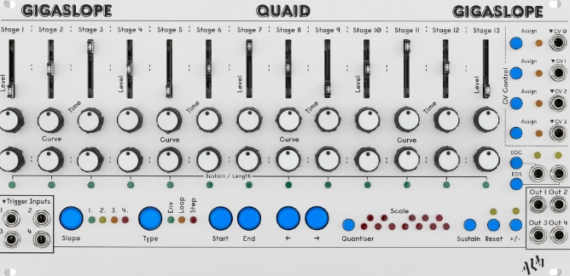

ALM Intros Quaid Gigaslope Four-Channel Multi-Mode Modular
ALM has shared this video intro for their new Quaid Gigaslope four-channel multi-mode modulator for Eurorack modular systems.
Each channel outputs a variable-staged slope that can act as a complex envelope, flexible LFO, or step sequence.
Each slope can contain up to 13 stages, which may be independent or overlap with other stages. Slopes can be triggered or run freely, with both manual and CV control over each stage’s level, duration, and curve.
The output range of each slope can be set and optionally quantized to musical scales. Trigger outputs are available at the end of each stage and at the completion of a slope.
Features:
- Quad multimode modulator with complex Envelope, LFO and Step Sequencer modes.
- 13 modulation stages shared or split between slopes.
- Per stage dedicated Level, Time and Curve controls.
- Per slope Quantizer with 19 different scales.
- Selectable output ranges of ±5V, 0-5V or 0-2.5V.
- Assignable ‘EOC’ (End of Cycle) or ‘EOS’ (End of Stage) trigger outputs.
- 4 freely assignable CV inputs.
- AXON CV expander support for 4 additional CV inputs.
- Performance-oriented interface.
- All states preserved across power cycles.
- USB-C for quick and easy ‘drag and drop’ firmware updates
- Skiff-friendly with reverse power protection.
- 2 Year Warranty.
Available now from fine ALM stockists worldwide.
Topics covered:
0:00 – Intro
0:59 – Envelope Mode
2:16 – Slope Range & Trigger Inputs
3:33 – Loop Mode
4:52 – Step Mode
6:04 – Quantiser
7:00 – EOS/EOC
7:36 – Assigning CV – Reset
8:32 – Assigning CV – Parameters
10:27 – End Jam
11:21 – Outro
The Quaid Gigaslope is available now for $787 USD.
